javax.microedition.lcdui
Class Display

java.lang.Object
  javax.microedition.lcdui.Display

public class Display
extends java.lang.Object

The Display class provides a MIDlet with access to the device's user interface hardware resources. It includes static methods for obtaining Display objects as well as instance methods to retrieve their properties and display user interface objects on them.

Display Resources

A MIDP device has one or more display resources for interacting with the user. Each resource includes a graphical display device and may also include keys, touchscreen input, etc.

A MIDlet gains access to a display resource using a Display object. Each Display object represents a specific MIDlet's use of a specific resource, rather than the resource itself. Hence, for a given display resource, each MIDlet has its own dedicated Display object for accessing it.

Display States

Multiple MIDlets may want to use the same display resource simultaneously. Some aspects of a display resource are exclusive in nature; that is, they can be made available to only one MIDlet at a time. For example, regular key events are typically provided to a single application. However, other resources may be non-exclusive, thereby allowing the resource to be simultaneously allocated to several MIDlets. For example, space on a large display can be split up into several windows, each of which is allocated to a specific application.

The nature of specific resources and the policies for sharing them between applications are largely platform dependent. However, the Display class defines three states that should be used in conjunction with the platform's policies for sharing display resources.

When a Display has foreground status, it is given the highest priority for accessing the corresponding display resource. Exclusive aspects of the resource are only available to the foreground Display, and it also has the highest priority to use non-exclusive aspects of the resource. For a given display resource, there can be no more than one foreground Display. If the resource is also used by the native UI of the device, there may be times when no Display is in the foreground.

When a Display has background status, all of its display resources are relinquished and unavailable to the MIDlet. For a given set of display resources, there can be any number of Displays that are in the background state. A Display is initially in this state and it cannot be changed unless a Displayable is shown on it.

When a Display is visible, it has access to at least one pixel on the display resource. However, it will not have access to exclusive aspects of the resource.

The application may implicitly request that a Display be brought to the foreground or sent to the background by calling the Display's setCurrent method. However, these requests to change the Display state are not guaranteed and are subject to the device's application window management behavior.

Display Hardware States

The underlying hardware resource represented by a Display may not always be available. For example, the main display of a mobile phone is not usable while the flip is closed. Furthermore, some resources are dynamic (e.g. a Bluetooth enabled projector) and their availability may be temporary in nature.

Therefore, a Display object has a hardware state to indicate the state of its underlying resource. This state refers to the display resource itself, rather than a specific MIDlet's ability to use it. Thus, all Displays that refer to the same hardware have the same hardware state, regardless of which MIDlet they belong to.

The hardware life-cycle is defined with three states:

• DISPLAY_HARDWARE_ENABLED - The Display's hardware is active and potentially available for use by the MIDlet. Attempts to use the Display should be successful, but due to the asynchronous nature of the API and possible system use, immediate availability of the resource is not guaranteed.
• DISPLAY_HARDWARE_DISABLED - The Display's hardware is inactive and currently cannot be used to interact with the user. For example, the main display of a mobile phone is disabled while the flip is closed. When a display resource is disabled, all of the corresponding Displays are temporarily placed in the background state. While the hardware is disabled, calls to setCurrent(), removeCurrent(), and setCurrentItem() should still be honored, but the Display MUST remain in the background. When the hardware is enabled again, the Display state should be restored to the most recent foreground/background request made; if no requests were made while the hardware was disabled, then the restored state should simply be the Display's state immediately before the hardware became disabled.
• DISPLAY_HARDWARE_ABSENT - This state only applies to an Auxiliary display hardware resource and it indicates that the resource is no longer accessible by the device. Attempts to use an absent Display will result in an exception being thrown. Displays that represent absent hardware are automatically placed in the background state. MIDlets should not retain references to absent Displays since they cannot be re-used. If the same Auxiliary display hardware becomes accessible once more, a new Display object is created to access it.

Obtaining Display Objects

For every MIDlet, there is always one primary Display object. The primary Display corresponds to the device's main display that is normally used to access its features. The application can get a reference to the primary Display instance by calling the getDisplay() method. The application may call the getDisplay() method at any time during course of its execution. The Display object returned by all calls to getDisplay() will remain the same during this time.

In addition to the primary Display, one or more secondary Displays may also be available to a MIDlet. These Displays correspond to secondary display devices such as the second screen on the outside of a mobile phone's flip; they may also include auxiliary display devices that are available to the device via a suitable connection.

The getDisplays(int) method returns a list of Display objects corresponding to a given MIDlet. The primary Display object is always returned as the first element in the list, followed by any secondary Display objects that are also available.

Display Capabilities

The primary Display must support all of the user interface features defined in the LCDUI package; however, secondary Displays might be less capable and may support only a subset of the features.

The capabilities of a given Display can be queried by calling the getCapabilities() method. This method returns an integer containing a bit field representation of the Display's capabilities. The bit field will contain a combination of the following values:

• SUPPORTS_COMMANDS : A Display must have this capability in order to present Commands
• SUPPORTS_INPUT_EVENTS : A Display must have this capability in order to receive raw input events (as provided to a Canvas or CustomItem)
• SUPPORTS_FORMS : A Display must have this capability in order to show Forms
• SUPPORTS_TICKER : A Display must have this capability in order to show Displayables that include a Ticker
• SUPPORTS_TITLE : A Display must have this capability in order to show Displayables that include a Title
• SUPPORTS_ALERTS : A Display must have this capability in order to show Alerts
• SUPPORTS_LISTS : A Display must have this capability in order to show Lists
• SUPPORTS_TEXTBOXES : A Display must have this capability in order to show TextBoxes
• SUPPORTS_FILESELECTORS : A Display must have this capability in order to show FileSelectors
• SUPPORTS_TABBEDPANES : A Display must have this capability in order to show TabbedPanes
• SUPPORTS_MENUS : A Display must have this capability in order to show Menus
• SUPPORTS_IDLEITEM : A Display must have this capability in order to display content on the idle screen
• SUPPORTS_ORIENTATION_PORTRAIT : A Display must have this capability if the longer dimension of the screen is its height
• SUPPORTS_ORIENTATION_LANDSCAPE : A Display must have this capability if the longer dimension of the screen is its width
• SUPPORTS_ORIENTATION_PORTRAIT180 : A Display must have this capability if the longer dimension of the screen is its height and content is rotated 180 degrees.
• SUPPORTS_ORIENTATION_LANDSCAPE180 : A Display must have this capability if the longer dimension of the screen is its width and content is rotated 180 degrees.

Basic support for rendering a Canvas is required for all Displays and is assumed if none of these capabilities are available.

A given Display's capabilities are static; that is, they do not change over time or in response to the state of the device. If a device includes a hardware resource whose capabilities are dynamic, then it must be represented as multiple Displays, with each one having a static set of capabilities and being enabled and disabled based on the current state of the device.

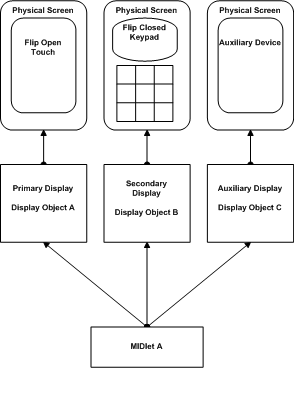

For example, the following device has a single physical screen but it operates quite differently with the flip open versus closed. With the flip in the open position, the screen is 240 x 320 pixels and includes touchscreen support, and thus it has support for all Display capabilities. However, with the flip closed, the screen is much smaller and has no input capabilities other than a numeric keypad. In this mode, very few capabilities would be available, perhaps just Tickers and Titles.

From the MIDlet's perspective, this device would have two Display objects corresponding to the two flip positions. Display A would be 240 x 320 pixels and have support for all capabilities; it would be enabled only while the flip is open. Display B is smaller and can only support Tickers and Titles and has limited key events instead of pointer events; it would be enabled only while the flip is closed.

Displayables

The user interface objects that are shown on a Display are contained within a Displayable object. At any time the application may have at most one Displayable object to be shown on a given Display. This Displayable is referred to as the current Displayable. A Displayable is also considered to be current on a given Display if it is to be shown pending the dismissal of an Alert, see the method setCurrent(Alert, Displayable)

If the device has multiple Displays, a Displayable is allowed to be used on multiple Displays, but it can only be current on one Display at any given time.

Displayable subclasses may require specific Display capabilities in order to function correctly. A DisplayCapabilityException will be thrown if the specified Display does not meet the needs of the Displayable sub-class that is being passed into the setCurrent methods; details about the Display requirements for a specific Displayable can be found in the documentation for that class. In addition, changes to a Displayable that will require capabilities not provided by its Display will also result in an exception being thrown. For example, the use of Commands on a Displayable will require that its Display can support commands; if they are not supported, a DisplayCapabilityException is thrown.

The Display class has a setCurrent() method for setting the current Displayable and a getCurrent() method for retrieving the current Displayable. The application has control over its current Displayable and may call setCurrent() at any time. Typically, the application will change the current Displayable in response to some user action. This is not always the case, however. Another thread may change the current Displayable in response to some other stimulus. The current Displayable will also be changed when the timer for an Alert elapses.

The application still has a notion of its current Displayable even if it is in the background. The current Displayable is significant, even for background applications, because the current Displayable is always the one that will be shown the next time the application is brought into the foreground. The application can detect whether a Displayable is actually visible on the display by calling isShown(). In the case of Canvas, the showNotify() and hideNotify() methods are called when the Canvas is made visible and is hidden, respectively.

It is possible for getCurrent() to return null. This may occur at startup time before the MIDlet application has called setCurrent() on its first screen, or if the current Displayable has been removed by calling removeCurrent. The getCurrent() method will never return a reference to a Displayable object that was not passed in a prior call to setCurrent() by this MIDlet.

System Screens

Typically, the current screen of the foreground MIDlet will be visible on the display. However, under certain circumstances, the system may create a screen that temporarily obscures the application's current screen. These screens are referred to as system screens. This may occur if the system needs to show a menu of commands or if the system requires the user to edit text on a separate screen instead of within a text field inside a Form. Even though the system screen obscures the application's screen, the notion of the current screen does not change. In particular, while a system screen is visible, a call to getCurrent() will return the application's current screen, not the system screen. The value returned by isShown() is false while the current Displayable is obscured by a system screen.

Color Scheme Data

This class contains methods to retrieve the prevailing foreground and background colors of the high-level user interface. These methods are useful for creating CustomItem objects that match the user interface of other items and for creating user interfaces within Canvas that match the user interface of the rest of the system.

Implementations are not restricted to using foreground and background colors in their user interfaces (for example, they might use highlight and shadow colors for a beveling effect) but the colors returned are those that match reasonably well with the implementation's color scheme. An application implementing a custom item should use the background color to clear its region and then paint text and geometric graphics (lines, arcs, rectangles) in the foreground color.

For a given MIDlet, each Display object may have a different color scheme to reflect different display hardware capabilities. For example, a color scheme used on the main color display might not be suitable for a secondary grayscale display, so it may employ a unique color scheme to ensure sufficient contrast.

The color scheme values are subject to skinning and theme settings on the device including those provided via JSR 258. Hence, the Display objects for different MIDlets may have different color scheme values even if they correspond to the same display resource.

Adding content to the idle screen

In MIDP 3.0 a new setIdleItem method is added to allow the MIDlet to add or remove the content shown on the idle screen. A corresponding getIdleItem method is provided to query what content is currently on the idle screen. Not all Display objects will support items on idle screen. The getCapabilities method can be used to test for idle support on a Display .

Each MIDlet has it's own instance of a Display class. This means that there can be more than one idle screen MIDlet shown on the idle at a time. However one instance of the Display class can contain only one item on the idle screen.

Colors on the idle screen

The Display class already provides a mechanism for MIDlets to query system colors, by means of color specifiers and the getColor method. This mechanism is expanded to include four new color specifiers for the idle screen.

Exact Placement of Commands

In MIDP 3.0 the method of using type and priority for Commands placement is supplemented with a method to use absolute placement. In general, an implementation can not know how many command placements that are available until a Displayable is assigned to a Display by a call to setCurrent().

To implement exact placement of commands the MIDlet must implement the CommandLayoutPolicy interface. See CommandLayoutPolicy for an example implementation of a custom exact placement policy.

A CommandLayoutPolicy instance can be set either on a Display or on a Displayable. The platform chooses which CommandLayoutPolicy to use in the following priority order:

• 1) If the Displayable has a CommandLayoutPolicy set, that policy will be used.
• 2) Otherwise, if the Display has a CommandLayoutPolicy, that policy will be used.
• 3) If neither the Displayable nor the Display has a CommandLayoutPolicy, the platform default layout will be used.

The CommandLayoutPolicy interface contains a layout method (onCommandLayout) that will be called when commands needs to be placed. This is typically done when changing orientation, scrolling in forms, changing tabs in a TabbedPane, Displayable being set as current for the first time and when adding/removing commands from a Displayable/Item. It will also be called if the native implementation changes the number of available command placements of the current Displayable. CommandLayoutPolicy.onCommandLayout(Displayable) MUST NOT be called if the Displayable has not yet been attached to a Display (via a call to the setCurrent() method).

When one of the layout methods is called it is up to the CommandLayoutPolicy implementation to query the current Displayable about which command positions that are available at that time and which commands that should be placed.

In an implementation of the CommandLayoutPolicy it is possible to use the Display.getExactPlacementPositions(int), Displayable.setMenu(Menu, int), Displayable.setCommand(Command, int), Display.getMenuPreferredPlacements(), Display.getCommandPreferredPlacements(int) and Displayable.getCommands() to implement the desired command layout.

If the CommandLayoutPolicy implementation throws an exception the implementation will revert to the Display's policy (if any). If the Display policy also fails, or no Display policy exists, the platform default Command layout is used instead.

The available placements are retrieved using getExactPlacementPositions(int). A placement is encoded as a base value for each border plus an index of the soft key along the border. The borders are labeled SOFTKEY_BOTTOM, SOFTKEY_LEFT, SOFTKEY_TOP, SOFTKEY_RIGHT and SOFTKEY_OFFSCREEN, each represented by a field (for example, Display.SOFTKEY_BOTTOM). The SOFTKEY_OFFSCREEN represents keys not on the screen. In the presence of multiple active screens, the Commands on the SOFTKEY_OFFSCREEN MUST be the same for all Displays. The index along a border are ordered from one to max number of commands on that border (no more than 15), counting from top to bottom or from left to right respectively. The indices are ordered according to:

Border	Index order
SOFTKEY_TOP or SOFTKEY_BOTTOM (horizontal)	LEFT to RIGHT
SOFTKEY_LEFT or SOFTKEY_RIGHT (vertical)	TOP to BOTTOM
SOFTKEY_OFFSCREEN	Device dependent

The getExactPlacementPositions(int) method returns an integer array, each element containing a possible exact placement for the Display associated with the Displayable.

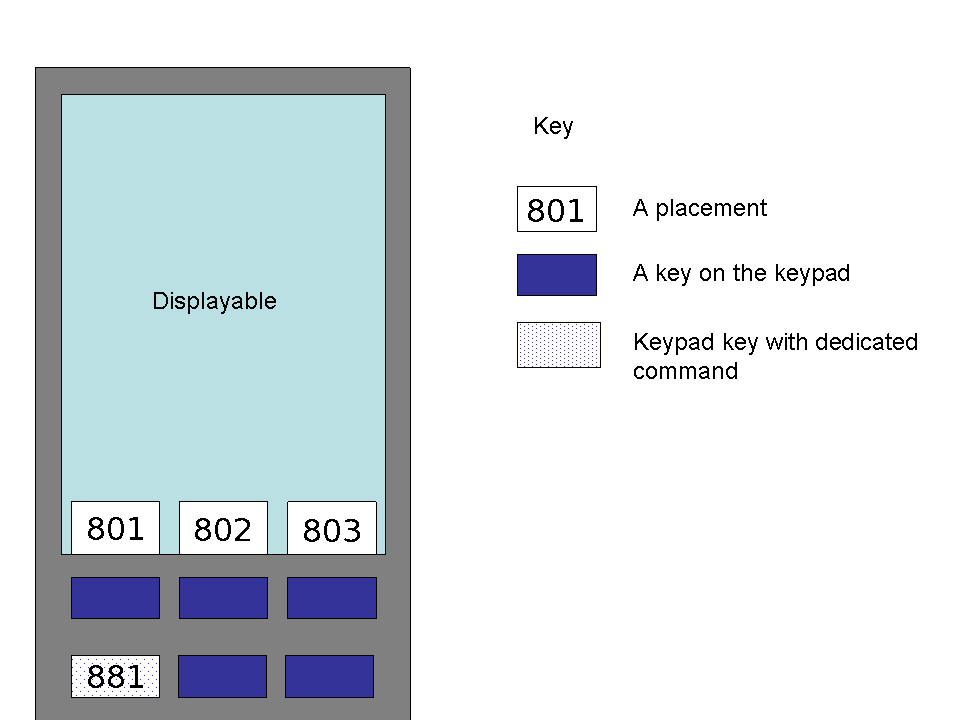

For example, consider a display that has four different placements where commands may be placed, three on the lower bottom border and one as a fixed key not directly tied to the screen. In this case:

 int[] bottomPlacements = getExactPlacementPositions(Display.SOFTKEY_BOTTOM);
 int[] offscreenPlacements = getExactPlacementPositions(Display.SOFTKEY_OFFSCREEN);


... would return bottomPlacement = [801, 802, 803] and offscreenPlacements = [881]. To continue the example, there are four valid placements available to the application: 801, 802, 803, and 881, see the figure below:

The getExactPlacementPositions(int) method allows the application to fetch valid placements. The application may then use Display.getCommandPreferredPlacements method to inquire the placements, if any, associated with a particular command type.

For example, assume that Command.BACK type command in normally placed on the dedicated key (placement 881 in the example above) on a given device. This information can be revealed by calling:

 int[] backPlacements = display.getCommandPreferredPlacements(Command.BACK);
 // backPlacements = [881]


Placing a Command object on the SOFTKEY_OFFSCREEN border places the object outside of the Displayable's visible area (typically mapped to a certain key).

Note that the set of placements available on a particular Displayable are set by the device, and this set cannot be changed by the application. This means that the application developer can specify where a Command is placed from a list of placements, but the developer can not add more placements to the list.

For this reason, developers who implement their own CommandLayoutPolicy should to consider the case where the number of Commands exceeds the number of available placements. If such a condition exists, the CommandLayoutPolicy should use the Menu class to put some of the commands into menus. Any Command or Menu not explicitly set at a placement (via Displayable.setCommand(Command, int), Displayable.setMenu(Menu, int), or Item.setCommand(Command, int)) in the CommandLayoutPolicy implementation will be ignored and not displayed.

Since:

MIDP 1.0

Field Summary

static int	ALERT Image type for Alert image.
static int	CHOICE_GROUP_ELEMENT Image type for ChoiceGroup element image.
static int	COLOR_BACKGROUND A color specifier for use with getColor.
static int	COLOR_BORDER A color specifier for use with getColor.
static int	COLOR_FOREGROUND A color specifier for use with getColor.
static int	COLOR_HIGHLIGHTED_BACKGROUND A color specifier for use with getColor.
static int	COLOR_HIGHLIGHTED_BORDER A color specifier for use with getColor.
static int	COLOR_HIGHLIGHTED_FOREGROUND A color specifier for use with getColor.
static int	COLOR_IDLE_BACKGROUND Color specifier for the background of items on idle screen
static int	COLOR_IDLE_FOREGROUND Color specifier for the foreground of items on idle screen
static int	COLOR_IDLE_HIGHLIGHTED_BACKGROUND Color specifier for the background of focused items on idle screen
static int	COLOR_IDLE_HIGHLIGHTED_FOREGROUND Color specifier for the foreground of focused items on idle screen
static int	COMMAND Image type for images used in Commands.
static int	DISPLAY_HARDWARE_ABSENT Hardware state indicating that the display hardware is no longer connected to the device and cannot be used.
static int	DISPLAY_HARDWARE_DISABLED Hardware state indicating that the display hardware is disabled and its contents are not visible to the user.
static int	DISPLAY_HARDWARE_ENABLED Hardware state indicating that the display hardware is enabled and available for use.
static int	LIST_ELEMENT Image type for List element image.
static int	MENU Image type for images used in Menus.
static int	MODE_ACTIVE Activity mode indicating that power-saving actions should be deferred for as long as possible to maximize the user's visibility of the Display.
static int	MODE_NORMAL Activity mode indicating that normal power management behavior should be applied.
static int	NOTIFICATION Image type for Notificationicon image.
static int	ORIENTATION_LANDSCAPE Orientation mode in which the longer dimension of the screen is its width.
static int	ORIENTATION_LANDSCAPE_180 Orientation mode in which the longer dimension of the screen is its width and content is rotated 180 degrees.
static int	ORIENTATION_PORTRAIT Orientation mode in which the longer dimension of the screen is its height.
static int	ORIENTATION_PORTRAIT_180 Orientation mode in which the longer dimension of the screen is its height and content is rotated 180 degrees.
static int	SOFTKEY_BOTTOM Specifies the bottom (or lower) horizontal border on the screen.
static int	SOFTKEY_INDEX_MASK Mask to isolate the index of the soft key.
static int	SOFTKEY_LEFT Specifies the left vertical border on the screen.
static int	SOFTKEY_OFFSCREEN Specifies a placement not on a screen.
static int	SOFTKEY_RIGHT Specifies the right vertical border on the screen.
static int	SOFTKEY_TOP Specifies the top (or upper) horizontal border on the screen.
static int	STATE_BACKGROUND Background state in which the Display is invisible and has no access to user interface related resources.
static int	STATE_FOREGROUND Foreground state in which the Display is visible and has priority over user interface related resources.
static int	STATE_VISIBLE Visible state in which the Display is at least partially visible but has limited access to user interface related resources.
static int	SUPPORTS_ALERTS The capability of supporting Alerts.
static int	SUPPORTS_COMMANDS The capability of supporting Commands.
static int	SUPPORTS_FILESELECTORS The capability of supporting FileSelectors.
static int	SUPPORTS_FORMS The capability of supporting Forms.
static int	SUPPORTS_IDLEITEM The capability of supporting an idle screen.
static int	SUPPORTS_INPUT_EVENTS The capability of receiving raw input events from the user.
static int	SUPPORTS_LISTS The capability of supporting Lists.
static int	SUPPORTS_MENUS The capability of supporting Menus.
static int	SUPPORTS_ORIENTATION_LANDSCAPE The capability of supporting an orientations of physical display in which the longer dimension of the screen is its width.
static int	SUPPORTS_ORIENTATION_LANDSCAPE180 The capability of supporting an orientations of physical display in which the longer dimension of the screen is its width and content is rotated 180 degrees.
static int	SUPPORTS_ORIENTATION_PORTRAIT The capability of supporting an orientations of physical display in which the longer dimension of the screen is its height.
static int	SUPPORTS_ORIENTATION_PORTRAIT180 The capability of supporting an orientations of physical display in which the longer dimension of the screen is its height and content is rotated 180 degrees.
static int	SUPPORTS_TABBEDPANES The capability of supporting TabbedPanes.
static int	SUPPORTS_TEXTBOXES The capability of supporting TextBoxes.
static int	SUPPORTS_TICKER The capability of showing Tickers to the user.
static int	SUPPORTS_TITLE The capability of showing Titles to the user.
static int	TAB Image type for TabbedPane icon image.

Method Summary

static void	addDisplayListener(DisplayListener l) Adds a listener to receive Display notifications.
void	callSerially(java.lang.Runnable r) Causes the Runnable object r to have its run() method called later, serialized with the event stream, soon after completion of the repaint cycle.
boolean	flashBacklight(int duration) Requests a flashing effect for the device's backlight.
int	getActivityMode() Gets the activity mode of this Display.
int	getBestImageHeight(int imageType) Returns the best image height for a given image type.
int	getBestImageWidth(int imageType) Returns the best image width for a given image type.
int	getBorderStyle(boolean highlighted) Returns the stroke style used for border drawing depending on the state of the component (highlighted/non-highlighted).
int	getCapabilities() Gets the capabilities of this Display.
int	getColor(int colorSpecifier) Returns one of the colors from the high level user interface color scheme, in the form 0xAARRGGBB based on the colorSpecifier passed in.
CommandLayoutPolicy	getCommandLayoutPolicy() This method will return the current CommandLayoutPolicy for this Display.
int[]	getCommandPreferredPlacements(int commandType) Returns array of integers containing the preferred placements normally associated with Command type commandType.
Displayable	getCurrent() Gets the current Displayable object for this Display.
static Display	getDisplay(MIDlet m) Gets the primary Display object that is unique to this MIDlet.
static Display[]	getDisplays(int capabilities) Gets a list of all the Displays for this MIDlet.
int	getDisplayState() Gets the state of this Display.
int	getDotPitch() Gets the dot pitch measurement of the Display.
int[]	getExactPlacementPositions(int border) This will get the possible exact placement positions for the given border on this Display.
int	getHardwareState() Gets the state of the hardware for this Display.
int	getHeight() Gets the height in pixels of the Display.
IdleItem	getIdleItem() Returns the current IdleItem on the Display.
int[]	getMenuPreferredPlacements() Returns an array of integers containing the preferred placements normally associated withMenu.
int[]	getMenuSupportedPlacements() Returns an array of integers containing the placements that support Menus.
int	getOrientation() Gets the current orientation of this Display.
int	getWidth() Gets the width in pixels of the Display.
boolean	hasPointerEvents() Checks if the Display supports pointer press and release events.
boolean	hasPointerMotionEvents() Checks if the Display supports pointer motion events (pointer dragged).
boolean	isBuiltIn() Checks if this Display's hardware is Built-In or Auxiliary.
boolean	isColor() Gets information about color support of the Display.
int	numAlphaLevels() Gets the number of alpha transparency levels supported by this Display.
int	numColors() Gets the number of colors (if isColor() is true) or graylevels (if isColor() is false) that can be represented on the display.
void	removeCurrent() Removes the current Displayable from this Display.
static void	removeDisplayListener(DisplayListener l) Removes a Display listener.
void	setActivityMode(int mode) Sets the activity mode of this Display.
void	setCommandLayoutPolicy(CommandLayoutPolicy policy) This method will set a new CommandLayoutPolicy for this Display.
void	setCurrent(Alert alert, Displayable nextDisplayable) Requests that this Alert be made current, and that nextDisplayable be made current after the Alert is dismissed.
void	setCurrent(Displayable nextDisplayable) Requests that a different Displayable object be made visible on the display.
void	setCurrentItem(Item item) Requests that the Displayable that contains this Item be made current, scrolls the Displayable so that this Item is visible, and possibly assigns the focus to this Item.
void	setIdleItem(IdleItem idleItem) Sets the specified IdleItem to the Display.
void	setPreferredOrientation(int orientation) Sets the preferred orientation for this Display.
boolean	vibrate(int duration) Requests operation of the device's vibrator.

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

LIST_ELEMENT

public static final int LIST_ELEMENT

Image type for List element image.

The value of LIST_ELEMENT is 1.

Since:

MIDP 2.0

See Also:

getBestImageWidth(int imageType), getBestImageHeight(int imageType), Constant Field Values

CHOICE_GROUP_ELEMENT

public static final int CHOICE_GROUP_ELEMENT

Image type for ChoiceGroup element image.

The value of CHOICE_GROUP_ELEMENT is 2.

Since:

MIDP 2.0

See Also:

getBestImageWidth(int imageType), getBestImageHeight(int imageType), Constant Field Values

ALERT

public static final int ALERT

Image type for Alert image.

The value of ALERT is 3.

Since:

MIDP 2.0

See Also:

getBestImageWidth(int imageType), getBestImageHeight(int imageType), Constant Field Values

TAB

public static final int TAB

Image type for TabbedPane icon image.

Since:

MIDP 3.0

See Also:

getBestImageWidth(int imageType), getBestImageHeight(int imageType), Constant Field Values

COMMAND

public static final int COMMAND

Image type for images used in Commands.

Since:

MIDP 3.0

See Also:

getBestImageWidth(int imageType), getBestImageHeight(int imageType), Constant Field Values

NOTIFICATION

public static final int NOTIFICATION

Image type for Notificationicon image.

Since:

MIDP 3.0

See Also:

getBestImageWidth(int imageType), getBestImageHeight(int imageType), Constant Field Values

MENU

public static final int MENU

Image type for images used in Menus.

Since:

MIDP 3.0

See Also:

getBestImageWidth(int imageType), getBestImageHeight(int imageType), Constant Field Values

COLOR_BACKGROUND

public static final int COLOR_BACKGROUND

A color specifier for use with getColor. COLOR_BACKGROUND specifies the background color of the screen. The background color will always contrast with the foreground color.

COLOR_BACKGROUND has the value 0.

Since:

MIDP 2.0

See Also:

getColor(int), Constant Field Values

COLOR_FOREGROUND

public static final int COLOR_FOREGROUND

A color specifier for use with getColor. COLOR_FOREGROUND specifies the foreground color, for text characters and simple graphics on the screen. Static text or user-editable text should be drawn with the foreground color. The foreground color will always contrast with background color.

COLOR_FOREGROUND has the value 1.

Since:

MIDP 2.0

See Also:

getColor(int), Constant Field Values

COLOR_HIGHLIGHTED_BACKGROUND

public static final int COLOR_HIGHLIGHTED_BACKGROUND

A color specifier for use with getColor. COLOR_HIGHLIGHTED_BACKGROUND identifies the color for the focus, or focus highlight, when it is drawn as a filled in rectangle. The highlighted background will always contrast with the highlighted foreground.

COLOR_HIGHLIGHTED_BACKGROUND has the value 2.

Since:

MIDP 2.0

See Also:

getColor(int), Constant Field Values

COLOR_HIGHLIGHTED_FOREGROUND

public static final int COLOR_HIGHLIGHTED_FOREGROUND

A color specifier for use with getColor. COLOR_HIGHLIGHTED_FOREGROUND identifies the color for text characters and simple graphics when they are highlighted. Highlighted foreground is the color to be used to draw the highlighted text and graphics against the highlighted background. The highlighted foreground will always contrast with the highlighted background.

COLOR_HIGHLIGHTED_FOREGROUND has the value 3.

Since:

MIDP 2.0

See Also:

getColor(int), Constant Field Values

COLOR_BORDER

public static final int COLOR_BORDER

A color specifier for use with getColor. COLOR_BORDER identifies the color for boxes and borders when the object is to be drawn in a non-highlighted state. The border color is intended to be used with the background color and will contrast with it. The application should draw its borders using the stroke style returned by getBorderStyle().

COLOR_BORDER has the value 4.

Since:

MIDP 2.0

See Also:

getColor(int), Constant Field Values

COLOR_HIGHLIGHTED_BORDER

public static final int COLOR_HIGHLIGHTED_BORDER

A color specifier for use with getColor. COLOR_HIGHLIGHTED_BORDER identifies the color for boxes and borders when the object is to be drawn in a highlighted state. The highlighted border color is intended to be used with the background color (not the highlighted background color) and will contrast with it. The application should draw its borders using the stroke style returned by getBorderStyle().

COLOR_HIGHLIGHTED_BORDER has the value 5.

Since:

MIDP 2.0

See Also:

getColor(int), Constant Field Values

COLOR_IDLE_BACKGROUND

public static final int COLOR_IDLE_BACKGROUND

Color specifier for the background of items on idle screen

COLOR_IDLE_BACKGROUND can be is used with getColor method to determine the background color of unfocused items on the idle screen. On some platforms this may be a transparent color.

COLOR_IDLE_BACKGROUND has the value 6.

Since:

MIDP 3.0

See Also:

Constant Field Values

COLOR_IDLE_FOREGROUND

public static final int COLOR_IDLE_FOREGROUND

Color specifier for the foreground of items on idle screen

COLOR_IDLE_FOREGROUND can be is used with getColor to determine the foreground color of unfocused items on the idle screen.

COLOR_IDLE_FOREGROUND has the value 7.

Since:

MIDP 3.0

See Also:

Constant Field Values

COLOR_IDLE_HIGHLIGHTED_BACKGROUND

public static final int COLOR_IDLE_HIGHLIGHTED_BACKGROUND

Color specifier for the background of focused items on idle screen

COLOR_IDLE_HIGHLIGHTED_BACKGROUND can be used with getColor to determine the background color of focused items on the idle screen. This color should be used to render the background of items on the idle screen. On some platforms this may be a transparent color.

COLOR_IDLE_HIGHLIGHTED_BACKGROUND has the value 8.

Since:

MIDP 3.0

See Also:

Constant Field Values

COLOR_IDLE_HIGHLIGHTED_FOREGROUND

public static final int COLOR_IDLE_HIGHLIGHTED_FOREGROUND

Color specifier for the foreground of focused items on idle screen

COLOR_IDLE_HIGHLIGHTED_FOREGROUND can be used with getColor to determine the foreground color of focused items on the Idle screen (IdleItem).

COLOR_IDLE_HIGHLIGHTED_FOREGROUND has the value 9.

Since:

MIDP 3.0

See Also:

Constant Field Values

DISPLAY_HARDWARE_ENABLED

public static final int DISPLAY_HARDWARE_ENABLED

Hardware state indicating that the display hardware is enabled and available for use.

Since:

MIDP 3.0

See Also:

Constant Field Values

DISPLAY_HARDWARE_DISABLED

public static final int DISPLAY_HARDWARE_DISABLED

Hardware state indicating that the display hardware is disabled and its contents are not visible to the user.

Since:

MIDP 3.0

See Also:

Constant Field Values

DISPLAY_HARDWARE_ABSENT

public static final int DISPLAY_HARDWARE_ABSENT

Hardware state indicating that the display hardware is no longer connected to the device and cannot be used. This state only applies to auxiliary display hardware.

Since:

MIDP 3.0

See Also:

Constant Field Values

STATE_FOREGROUND

public static final int STATE_FOREGROUND

Foreground state in which the Display is visible and has priority over user interface related resources.

Since:

MIDP 3.0

See Also:

Constant Field Values

STATE_VISIBLE

public static final int STATE_VISIBLE

Visible state in which the Display is at least partially visible but has limited access to user interface related resources.

Since:

MIDP 3.0

See Also:

Constant Field Values

STATE_BACKGROUND

public static final int STATE_BACKGROUND

Background state in which the Display is invisible and has no access to user interface related resources.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_INPUT_EVENTS

public static final int SUPPORTS_INPUT_EVENTS

The capability of receiving raw input events from the user. The events may be in the form of keys events or pointer events.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_COMMANDS

public static final int SUPPORTS_COMMANDS

The capability of supporting Commands. The user is able to view the Commands and invoke them.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_FORMS

public static final int SUPPORTS_FORMS

The capability of supporting Forms. The Display must be able to support all features of the Form class and all Item subclasses including CustomItem. In addition to rendering the Form, the Display must also allow the user to interact with the appropriate Items.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_TICKER

public static final int SUPPORTS_TICKER

The capability of showing Tickers to the user.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_TITLE

public static final int SUPPORTS_TITLE

The capability of showing Titles to the user.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_ALERTS

public static final int SUPPORTS_ALERTS

The capability of supporting Alerts. The Display must be able to show the Alert and, if necessary, allow the user to respond to it.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_LISTS

public static final int SUPPORTS_LISTS

The capability of supporting Lists. The Display must be able to show a List, allow the user to scroll through its contents, and select an item in the List.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_TEXTBOXES

public static final int SUPPORTS_TEXTBOXES

The capability of supporting TextBoxes. The Display must be able to show the TextBox and allow the user to enter or edit its contents.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_TABBEDPANES

public static final int SUPPORTS_TABBEDPANES

The capability of supporting TabbedPanes.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_FILESELECTORS

public static final int SUPPORTS_FILESELECTORS

The capability of supporting FileSelectors.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_MENUS

public static final int SUPPORTS_MENUS

The capability of supporting Menus.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_IDLEITEM

public static final int SUPPORTS_IDLEITEM

The capability of supporting an idle screen.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_ORIENTATION_PORTRAIT

public static final int SUPPORTS_ORIENTATION_PORTRAIT

The capability of supporting an orientations of physical display in which the longer dimension of the screen is its height.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_ORIENTATION_LANDSCAPE

public static final int SUPPORTS_ORIENTATION_LANDSCAPE

The capability of supporting an orientations of physical display in which the longer dimension of the screen is its width.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_ORIENTATION_PORTRAIT180

public static final int SUPPORTS_ORIENTATION_PORTRAIT180

The capability of supporting an orientations of physical display in which the longer dimension of the screen is its height and content is rotated 180 degrees.

Since:

MIDP 3.0

See Also:

Constant Field Values

SUPPORTS_ORIENTATION_LANDSCAPE180

public static final int SUPPORTS_ORIENTATION_LANDSCAPE180

The capability of supporting an orientations of physical display in which the longer dimension of the screen is its width and content is rotated 180 degrees.

Since:

MIDP 3.0

See Also:

Constant Field Values

ORIENTATION_PORTRAIT

public static final int ORIENTATION_PORTRAIT

Orientation mode in which the longer dimension of the screen is its height.

Since:

MIDP 3.0

See Also:

Constant Field Values

ORIENTATION_LANDSCAPE

public static final int ORIENTATION_LANDSCAPE

Orientation mode in which the longer dimension of the screen is its width.

Since:

MIDP 3.0

See Also:

Constant Field Values

ORIENTATION_PORTRAIT_180

public static final int ORIENTATION_PORTRAIT_180

Orientation mode in which the longer dimension of the screen is its height and content is rotated 180 degrees.

Since:

MIDP 3.0

See Also:

Constant Field Values

ORIENTATION_LANDSCAPE_180

public static final int ORIENTATION_LANDSCAPE_180

Orientation mode in which the longer dimension of the screen is its width and content is rotated 180 degrees.

Since:

MIDP 3.0

See Also:

Constant Field Values

SOFTKEY_BOTTOM

public static final int SOFTKEY_BOTTOM

Specifies the bottom (or lower) horizontal border on the screen.

Value 800 is assigned to SOFTKEY_BOTTOM. The values 801..815 are reserved for soft keys on the bottom of the screen.

Since:

MIDP 3.0

See Also:

Constant Field Values

SOFTKEY_LEFT

public static final int SOFTKEY_LEFT

Specifies the left vertical border on the screen.

Value 820 is assigned to SOFTKEY_BOTTOM. The values 821..835 are reserved for soft keys on the left of the screen.

Since:

MIDP 3.0

See Also:

Constant Field Values

SOFTKEY_TOP

public static final int SOFTKEY_TOP

Specifies the top (or upper) horizontal border on the screen.

Value 840 is assigned to SOFTKEY_TOP. The values 841..855 are reserved for soft keys on the top of the screen.

Since:

MIDP 3.0

See Also:

Constant Field Values

SOFTKEY_RIGHT

public static final int SOFTKEY_RIGHT

Specifies the right vertical border on the screen.

Value 860 is assigned to SOFTKEY_TOP. The values 861..875 are reserved for soft keys on the right of the screen.

Since:

MIDP 3.0

See Also:

Constant Field Values

SOFTKEY_OFFSCREEN

public static final int SOFTKEY_OFFSCREEN

Specifies a placement not on a screen. For example, a dedicated key attached to a particular soft button.

Value 880 is assigned to SOFTKEY_OFFSCREEN. The values 881..895 are reserved for soft keys off the screen.

Since:

MIDP 3.0

See Also:

Constant Field Values

SOFTKEY_INDEX_MASK

public static final int SOFTKEY_INDEX_MASK

Mask to isolate the index of the soft key. Only 15 soft keys can defined on each border. For example:

 int action = getGameAction(keycode);
 int index = action & SOFTKEY_INDEX_MASK;
 int border = action - index;


Value 15 is assigned to SOFTKEY_MASK.

Since:

MIDP 3.0

See Also:

Constant Field Values

MODE_NORMAL

public static final int MODE_NORMAL

Activity mode indicating that normal power management behavior should be applied.

Value 0 is assigned to MODE_NORMAL.

Since:

MIDP 3.0

See Also:

Constant Field Values

MODE_ACTIVE

public static final int MODE_ACTIVE

Activity mode indicating that power-saving actions should be deferred for as long as possible to maximize the user's visibility of the Display.

Value 1 is assigned to MODE_ACTIVE.

Since:

MIDP 3.0

See Also:

Constant Field Values

Method Detail

getDisplay

public static Display getDisplay(MIDlet m)

Gets the primary Display object that is unique to this MIDlet.

Parameters:

m - MIDlet of the application

Returns:

the primary display object that the application can use for its user interface

Throws:

java.lang.NullPointerException - if m is null

getDisplays

public static Display[] getDisplays(int capabilities)

Gets a list of all the Displays for this MIDlet. The returned array will be at least one element long; the first element (index 0) contains a reference to the primary Display which can also be obtained using getDisplay(javax.microedition.midlet.MIDlet).

The developer can use the capabilities parameter to filter the list of Displays to only those that include specific capabilities. If 0 is used, all Displays are returned regardless of their capabilities. Since the Primary Display must support all capabilities, it is always returned as the first element regardless of the capabilities requested.

The capabilities parameter may include any combination of SUPPORTS_INPUT_EVENTS, SUPPORTS_COMMANDS, SUPPORTS_FORMS, SUPPORTS_TICKER, SUPPORTS_TITLE, SUPPORTS_ALERTS, SUPPORTS_LISTS, SUPPORTS_TEXTBOXES, SUPPORTS_TABBEDPANES, SUPPORTS_FILESELECTORS, SUPPORTS_MENUS, SUPPORTS_IDLEITEM SUPPORTS_ORIENTATION_PORTRAIT, SUPPORTS_ORIENTATION_LANDSCAPE, SUPPORTS_ORIENTATION_PORTRAIT180, SUPPORTS_ORIENTATION_LANDSCAPE180.

The hardware state of the returned Displays should be DISPLAY_HARDWARE_ENABLED or DISPLAY_HARDWARE_DISABLED. Auxiliary Displays that have become absent should not be returned in the list; however, a Display may become absent at any time and so the state of a returned Display object cannot be guaranteed.

Parameters:

capabilities - a bit field representing the desired Display capabilities

Returns:

An array of Displays containing at least 1 element

Throws:

java.lang.IllegalArgumentException - if the capabilities are not valid values (see above)

Since:

MIDP 3.0

addDisplayListener

public static void addDisplayListener(DisplayListener l)

Adds a listener to receive Display notifications. The listener will be notified of changes to all Displays. Multiple listeners may be added, though the order in which they are notified of a given event is implementation dependent.

Parameters:

l - the listener to receive events about the MIDlet's Displays

Throws:

java.lang.NullPointerException - if the listener is null

Since:

MIDP 3.0

removeDisplayListener

public static void removeDisplayListener(DisplayListener l)

Removes a Display listener. The listener will no longer be notified of changes to the Displays.

Parameters:

l - the listener to be removed

Throws:

java.lang.NullPointerException - if the listener is null

java.lang.IllegalStateException - if the listener is not currently a listener

Since:

MIDP 3.0

setCommandLayoutPolicy

public void setCommandLayoutPolicy(CommandLayoutPolicy policy)

This method will set a new CommandLayoutPolicy for this Display.

Parameters:

policy - The new CommandLayoutPolicy that should be used. If the parameter is null then default policy for the handset is used.

Since:

MIDP 3.0

getCommandLayoutPolicy

public CommandLayoutPolicy getCommandLayoutPolicy()

This method will return the current CommandLayoutPolicy for this Display.

Returns:

The current CommandLayoutPolicy

Since:

MIDP 3.0

getColor

public int getColor(int colorSpecifier)

Returns one of the colors from the high level user interface color scheme, in the form 0xAARRGGBB based on the colorSpecifier passed in.

Parameters:

colorSpecifier - the predefined color specifier; must be one of COLOR_BACKGROUND, COLOR_FOREGROUND, COLOR_HIGHLIGHTED_BACKGROUND, COLOR_HIGHLIGHTED_FOREGROUND, COLOR_BORDER, COLOR_HIGHLIGHTED_BORDER, COLOR_IDLE_BACKGROUND, COLOR_IDLE_FOREGROUND, COLOR_IDLE_HIGHLIGHTED_BACKGROUND or COLOR_IDLE_HIGHLIGHTED_FOREGROUND

Returns:

color in the form of 0x00RRGGBB

Throws:

java.lang.IllegalArgumentException - if colorSpecifier is not a valid color specifier

Since:

MIDP 2.0

getBorderStyle

public int getBorderStyle(boolean highlighted)

Returns the stroke style used for border drawing depending on the state of the component (highlighted/non-highlighted). For example, on a monochrome system, the border around a non-highlighted item might be drawn with a DOTTED stroke style while the border around a highlighted item might be drawn with a SOLID stroke style.

Parameters:

highlighted - true if the border style being requested is for the highlighted state, false if the border style being requested is for the non-highlighted state

Returns:

Graphics.DOTTED or Graphics.SOLID

Since:

MIDP 2.0

isColor

public boolean isColor()

Gets information about color support of the Display.

Returns:

true if the Display supports color, false otherwise

numColors

public int numColors()

Gets the number of colors (if isColor() is true) or graylevels (if isColor() is false) that can be represented on the display.

Note that the number of colors for a black and white display is 2.

Returns:

number of colors

numAlphaLevels

public int numAlphaLevels()

Gets the number of alpha transparency levels supported by this Display. The minimum legal return value is 2, which indicates support for full transparency and full opacity and no blending. Return values greater than 2 indicate that alpha blending is supported. For further information, see Alpha Processing.

Returns:

number of alpha levels supported

Since:

MIDP 2.0

getCurrent

public Displayable getCurrent()

Gets the current Displayable object for this Display. The Displayable object returned may not actually be visible on the device if the Display is in the background. The Displayable.isShown() method may be called to determine whether the Displayable is actually visible on the display.

The value returned by getCurrent() may be null if a Displayable has yet to be shown on this Display or if removeCurrent has been called.

Returns:

the MIDlet's current Displayable object

See Also:

setCurrent(javax.microedition.lcdui.Displayable)

removeCurrent

public void removeCurrent()

Removes the current Displayable from this Display. The Display is moved to the background state if it is not in that state already.

The value returned by getCurrent() is null after removeCurrent has been called.

Since:

MIDP 3.0

See Also:

setCurrent(javax.microedition.lcdui.Displayable)

setCurrent

public void setCurrent(Displayable nextDisplayable)

Requests that a different Displayable object be made visible on the display. The change will typically not take effect immediately. It may be delayed so that it occurs between event delivery method calls, although it is not guaranteed to occur before the next event delivery method is called. The setCurrent() method returns immediately, without waiting for the change to take place. Because of this delay, a call to getCurrent() shortly after a call to setCurrent() is unlikely to return the value passed to setCurrent().

Calls to setCurrent() are not queued. A delayed request made by a setCurrent() call may be superseded by a subsequent call to setCurrent(). For example, if screen S1 is current, then

 d.setCurrent(S2);
 d.setCurrent(S3);


may eventually result in S3 being made current, bypassing S2 entirely.

When a MIDlet application is first started, there is no current Displayable object. It is the responsibility of the application to ensure that a Displayable is visible and can interact with the user at all times. Therefore, the application should always call setCurrent() as part of its initialization.

The application may pass null as the argument to setCurrent(). This does not have the effect of setting the current Displayable to null; instead, the current Displayable remains unchanged. However, the application management software may interpret this call as a request to place the Display in the background. This implies that a call to getCurrent() after a setCurrent(null) will return the current Displayable , and not null. Similarly, if the Display is in the background, passing a non-null reference to setCurrent() may be interpreted by the application management software as a request to move the Display to the foreground. The request should be considered to be made even if the current Displayable is passed to the setCurrent().

For example, the code

 d.setCurrent(d.getCurrent());


generally will have no effect other than requesting that the Display be brought to the foreground. These are only requests, and there is no requirement that the application management software comply with these requests in a timely fashion if at all.

If the Displayable passed to setCurrent() is an Alert, the previously current Displayable, if any, is restored after the Alert has been dismissed. If there is a current Displayable, the effect is as if setCurrent(Alert, getCurrent()) had been called. Note that this will result in an exception being thrown if the current Displayable is already an alert. If there is no current Displayable (which may occur at startup time) the implementation's previous state will be restored after the Alert has been dismissed. The automatic restoration of the previous Displayable or the previous state occurs only when the Alert's default listener is present on the Alert when it is dismissed. See Alert Commands and Listeners for details.

To specify the Displayable to be shown after an Alert is dismissed, the application should use the setCurrent(Alert, Displayable) method. If the application calls setCurrent() while an Alert is current, the Alert is removed from the display and any timer it may have set is cancelled.

If the application calls setCurrent() while a system screen is active, the effect may be delayed until after the system screen is dismissed. The implementation may choose to interpret setCurrent() in such a situation as a request to cancel the effect of the system screen, regardless of whether setCurrent() has been delayed.

The properties of the Displayable with regards to dimensions and capabilities are set at the time setCurrent() is called.

Parameters:

nextDisplayable - the Displayable requested to be made current; null is allowed

Throws:

java.lang.IllegalStateException - if this Display's hardware is absent

java.lang.IllegalStateException - if the Displayable is current on another Display

java.lang.IllegalStateException - if the Displayable is currently on a tab of a TabbedPane and the TabbedPane is current on another Display

DisplayCapabilityException - if the Displayable is incompatible with this Display

See Also:

getCurrent()

setCurrent

public void setCurrent(Alert alert,
                       Displayable nextDisplayable)

Requests that this Alert be made current, and that nextDisplayable be made current after the Alert is dismissed. This call returns immediately regardless of the Alert's timeout value or whether it is a modal alert. The nextDisplayable must not be an Alert, and it must not be null.

The automatic advance to nextDisplayable occurs only when the Alert's default listener is present on the Alert when it is dismissed. See Alert Commands and Listeners for details.

In other respects, this method behaves identically to setCurrent(Displayable).

Parameters:

alert - the alert to be shown

nextDisplayable - the Displayable to be shown after this alert is dismissed

Throws:

java.lang.NullPointerException - if alert or nextDisplayable is null

java.lang.IllegalArgumentException - if nextDisplayable is an Alert

java.lang.IllegalStateException - if this Display's hardware is absent

java.lang.IllegalStateException - if the Alert or the Displayable is current on another Display

java.lang.IllegalStateException - if the Displayable is currently on a tab of a TabbedPane and the TabbedPane is current on another Display

DisplayCapabilityException - if the Displayable is incompatible with this Display

See Also:

Alert, getCurrent()

setCurrentItem

public void setCurrentItem(Item item)

Requests that the Displayable that contains this Item be made current, scrolls the Displayable so that this Item is visible, and possibly assigns the focus to this Item. The containing Displayable is first made current as if setCurrent(Displayable) had been called. When the containing Displayable becomes current, or if it is already current, it is scrolled if necessary so that the requested Item is made visible. Then, if the implementation supports the notion of input focus, and if the Item accepts the input focus, the input focus is assigned to the Item.

This method always returns immediately, without waiting for the switching of the Displayable, the scrolling, and the assignment of input focus to take place. The Display will be moved to the foreground state if needed.

It is an error for the Item not to be contained within a container. It is also an error if the Item is contained within an Alert.

Parameters:

item - the item that should be made visible

Throws:

java.lang.IllegalStateException - if the item is not owned by a container

java.lang.IllegalStateException - if the item is owned by an Alert

java.lang.IllegalStateException - if this Display's hardware is absent

java.lang.IllegalStateException - if the item's container is current on another Display

java.lang.IllegalStateException - if the item's container is currently on a tab of a TabbedPane and the TabbedPane is current on another Display

DisplayCapabilityException - if the item's container is incompatible with this Display

java.lang.NullPointerException - if item is null

Since:

MIDP 2.0

callSerially

public void callSerially(java.lang.Runnable r)

Causes the Runnable object r to have its run() method called later, serialized with the event stream, soon after completion of the repaint cycle. As noted in the Event Handling section of the package summary, the methods that deliver event notifications to the application are all called serially. The call to r.run() will be serialized along with the event calls into the application. The run() method will be called exactly once for each call to callSerially(). Calls to run() will occur in the order in which they were requested by calls to callSerially().

If the current Displayable is a Canvas that has a repaint pending at the time of a call to callSerially(), the paint() method of the Canvas will be called and will return, and a buffer switch will occur (if double buffering is in effect), before the run() method of the Runnable is called. If the current Displayable contains one or more CustomItems that have repaints pending at the time of a call to callSerially(), the paint() methods of the CustomItems will be called and will return before the run() method of the Runnable is called. Calls to the run() method will occur in a timely fashion, but they are not guaranteed to occur immediately after the repaint cycle finishes, or even before the next event is delivered.

The callSerially() method may be called from any thread. The call to the run() method will occur independently of the call to callSerially(). In particular, callSerially() will never block waiting for r.run() to return.

As with other callbacks, the call to r.run() must return quickly. If it is necessary to perform a long-running operation, it may be initiated from within the run() method. The operation itself should be performed within another thread, allowing run() to return.

The callSerially() facility may be used by applications to run an animation that is properly synchronized with the repaint cycle. A typical application will set up a frame to be displayed and then call repaint(). The application must then wait until the frame is actually displayed, after which the setup for the next frame may occur. The call to run() notifies the application that the previous frame has finished painting. The example below shows callSerially() being used for this purpose.

  class Animation extends Canvas
      implements Runnable {

  // paint the current frame
  void paint(Graphics g) { ... }

     Display display; // the display for the application

     void paint(Graphics g) { ... } // paint the current frame

     void startAnimation() {
         // set up initial frame
         repaint();
         display.callSerially(this);
     }

     // called after previous repaint is finished
     void run() {
        if (  /* there are more frames * / ) {
             // set up the next frame
             repaint();
             display.callSerially(this);
         }
     }
  }


Parameters:

r - instance of interface Runnable to be called

flashBacklight

public boolean flashBacklight(int duration)

Requests a flashing effect for the device's backlight. The flashing effect is intended to be used to attract the user's attention or as a special effect for games. Examples of flashing are cycling the backlight on and off or from dim to bright repeatedly. The return value indicates if the flashing of the backlight can be controlled by the application.

The flashing effect occurs for the requested duration, or it is switched off if the requested duration is zero. This method returns immediately; that is, it must not block the caller while the flashing effect is running.

When the flashing effect is complete, the backlight MUST be restored to the state it was in immediately before calling this method. BACKLIGHT system events MUST NOT be posted as a result of the flashing effect.

Calls to this method are honored only if the Display is in the foreground. This method MUST perform no action and return false if the Display is in the background.

The device MAY limit or override the duration. For devices that do not include a controllable backlight, calls to this method return false.

Parameters:

duration - the number of milliseconds the backlight should be flashed, or zero if the flashing should be stopped

Returns:

true if the backlight can be controlled by the application and this display is in the foreground, false otherwise

Throws:

java.lang.IllegalArgumentException - if duration is negative

Since:

MIDP 2.0

vibrate

public boolean vibrate(int duration)

Requests operation of the device's vibrator. The vibrator is intended to be used to attract the user's attention or as a special effect for games. The return value indicates if the vibrator can be controlled by the application.

This method switches on the vibrator for the requested duration, or switches it off if the requested duration is zero. If this method is called while the vibrator is still activated from a previous call, the request is interpreted as setting a new duration. It is not interpreted as adding additional time to the original request. This method returns immediately; that is, it must not block the caller while the vibrator is running.

Calls to this method are honored only if the Display is in the foreground. This method MUST perform no action and return false if the Display is in the background.

The device MAY limit or override the duration. For devices that do not include a controllable vibrator, calls to this method return false.

Parameters:

duration - the number of milliseconds the vibrator should be run, or zero if the vibrator should be turned off

Returns:

true if the vibrator can be controlled by the application and this display is in the foreground, false otherwise

Throws:

java.lang.IllegalArgumentException - if duration is negative

Since:

MIDP 2.0

getBestImageWidth

public int getBestImageWidth(int imageType)

Returns the best image width for a given image type. The image type must be one of LIST_ELEMENT, CHOICE_GROUP_ELEMENT, ALERT, TAB, COMMAND, NOTIFICATION, or MENU.

Parameters:

imageType - the image type

Returns:

the best image width for the image type, may be zero if there is no best size; must not be negative

Throws:

java.lang.IllegalArgumentException - if imageType is illegal

Since:

MIDP 2.0

getBestImageHeight

public int getBestImageHeight(int imageType)

Returns the best image height for a given image type. The image type must be one of LIST_ELEMENT, CHOICE_GROUP_ELEMENT, ALERT, TAB, COMMAND, NOTIFICATION, or MENU.

Parameters:

imageType - the image type

Returns:

the best image height for the image type, may be zero if there is no best size; must not be negative

Throws:

java.lang.IllegalArgumentException - if imageType is illegal

Since:

MIDP 2.0

getHardwareState

public int getHardwareState()

Gets the state of the hardware for this Display. The state can be DISPLAY_HARDWARE_ENABLED, DISPLAY_HARDWARE_DISABLED, or DISPLAY_HARDWARE_ABSENT (applicable to Auxiliary display hardware only).

Returns:

the current state of the hardware

Since:

MIDP 3.0

getDisplayState

public int getDisplayState()

Gets the state of this Display. The state can be STATE_FOREGROUND, STATE_VISIBLE, or STATE_BACKGROUND.

Returns:

the current state of this Display

Since:

MIDP 3.0

getCapabilities

public int getCapabilities()

Gets the capabilities of this Display. The returned integer value may be any combination of SUPPORTS_INPUT_EVENTS, SUPPORTS_COMMANDS, SUPPORTS_FORMS, SUPPORTS_TICKER, SUPPORTS_TITLE, SUPPORTS_ALERTS, SUPPORTS_LISTS, SUPPORTS_TEXTBOXES, SUPPORTS_TABBEDPANES, SUPPORTS_FILESELECTORS, SUPPORTS_ORIENTATION_PORTRAIT, SUPPORTS_ORIENTATION_LANDSCAPE, SUPPORTS_ORIENTATION_PORTRAIT180, SUPPORTS_ORIENTATION_LANDSCAPE180, SUPPORTS_MENUS, SUPPORTS_IDLEITEM.
If 0 is returned, the Display has only basic capabilities for displaying graphical content in a Canvas.

Returns:

the capabilities of this Display

Since:

MIDP 3.0

isBuiltIn

public boolean isBuiltIn()

Checks if this Display's hardware is Built-In or Auxiliary. Built-in display hardware is an integral part of the device and is never absent. Auxiliary hardware may become absent if the connection to it is lost.

Returns:

true if the Display is for Built-In display hardware, false if it is for Auxiliary display hardware

Since:

MIDP 3.0

getDotPitch

public int getDotPitch()

Gets the dot pitch measurement of the Display. This measurement corresponds to the physical spacing of pixels on the display device. Applications can use this information to determine how pixel-based dimensions correspond to physical dimensions on a particular Display. For example, if a Display has a dot pitch of 128 micrometers, then a 100 x 200 pixel Image will be 1.28 cm x 2.56 cm when shown on that Display. The displays on MIDP devices are assumed to have pixels that are approximately square in shape, so the single value applies to both the vertical and horizontal directions. If a display's pixels are not exactly square, the reported dot pitch should be the average of the horizontal and vertical dot pitch values.

Returns:

the dot pitch of the Display, in micrometers

Since:

MIDP 3.0

setPreferredOrientation

public void setPreferredOrientation(int orientation)

Sets the preferred orientation for this Display.

The orientation must one of ORIENTATION_PORTRAIT, ORIENTATION_LANDSCAPE, ORIENTATION_PORTRAIT_180, or ORIENTATION_LANDSCAPE_180 This call may not have an effect on the actual orientation of the display if the specified orientation is not supported on the device. The getCapabilities method can be used to check if the Display support a particular orientation. The application may use getOrientation() to detect the actual orientation of the display after this call.

Parameters:

orientation - the new preferred orientation for this Display

Throws:

java.lang.IllegalArgumentException - if the orientation value is invalid

Since:

MIDP 3.0

See Also:

getOrientation()

getOrientation

public int getOrientation()

Gets the current orientation of this Display. The orientation may be ORIENTATION_PORTRAIT, ORIENTATION_LANDSCAPE, ORIENTATION_PORTRAIT_180, or ORIENTATION_LANDSCAPE_180.

Returns:

the current orientation

Since:

MIDP 3.0

setIdleItem

public void setIdleItem(IdleItem idleItem)

Sets the specified IdleItem to the Display. Setting new IdleItem removes the old one from the Display. Passing null as the parameter removes the currently set IdleItem from the Display.

Calling this method does not guarantee that an IdleItem will become part of the idle screen for a display. This method merely requests that the system places the IdleItem to the display. When the IdleItem has been added to the display IdleItem.addedToDisplay method is called to inform the IdleItem that it is actually part of the idle screen.

Parameters:

idleItem - the IdleItem to be set to the display

Throws:

DisplayCapabilityException - If idle screen access is not supported on this display.

java.lang.IllegalStateException - If the item is already owned by a Form or Display.

Since:

MIDP 3.0

getIdleItem

public IdleItem getIdleItem()

Returns the current IdleItem on the Display.

Returns:

the IdleItem currently on the display, null if there is no IdleItem set to the display

Since:

MIDP 3.0

getCommandPreferredPlacements

public int[] getCommandPreferredPlacements(int commandType)

Returns array of integers containing the preferred placements normally associated with Command type commandType.

If the method is supplied with an invalid commandType, an IllegalArgumentException will be thrown.

Parameters:

commandType - the command type to fetch placements for

Returns:

the preferred placements for the given commandType on this Display, or null if no placements are associated to the commandType.

Throws:

java.lang.IllegalArgumentException - If the commandType is invalid.

Since:

MIDP 3.0

See Also:

Command

getMenuPreferredPlacements

public int[] getMenuPreferredPlacements()

Returns an array of integers containing the preferred placements normally associated withMenu.

Returns:

the preferred placements for Menu on this Display, or null if no preferred placements are associated with Menu.

Since:

MIDP 3.0

See Also:

Menu

getMenuSupportedPlacements

public int[] getMenuSupportedPlacements()

Returns an array of integers containing the placements that support Menus.

Returns:

the placements that support Menu on this Display, or null if no placements support Menus on this Display.

Since:

MIDP 3.0

See Also:

Menu

getExactPlacementPositions

public int[] getExactPlacementPositions(int border)

This will get the possible exact placement positions for the given border on this Display. The method will return an array of available positions for the given border. The border parameter is dependent on the current orientation of the Display. This means that if the display orientation changes, the positions need to be fetched again for the same border id. Each index in the array contains a placement along the border. For horizontal borders (SOFTKEY_BOTTOM, SOFTKEY_TOP) the order of the elements is from left to right. For vertical (SOFTKEY_LEFT, SOFTKEY_RIGHT), the order is from top to bottom. The first possible placement on a border is always 1 plus the border.

Running the code:

int[] pos = getExactPlacementPositions(Display.SOFTKEY_BOTTOM);

may return the following:
pos[0] = 801
pos[1] = 803

In this example, the first and third place along the Display.SOFTKEY_BOTTOM are available.

Parameters:

border - Any of Display.SOFTKEY_LEFT, Display.SOFTKEY_BOTTOM, Display.SOFTKEY_TOP, Display.SOFTKEY_RIGHT or Display.SOFTKEY_OFFSCREEN

Returns:

an array with placement positions or null if none are available.

Throws:

java.lang.IllegalArgumentException - if border is not a valid border.

Since:

MIDP 3.0

hasPointerEvents

public boolean hasPointerEvents()

Checks if the Display supports pointer press and release events.

Returns:

true if the Display supports pointer events.

Since:

MIDP 3.0

hasPointerMotionEvents

public boolean hasPointerMotionEvents()

Checks if the Display supports pointer motion events (pointer dragged). Applications may use this method to determine if this Display is capable of supporting motion events.

Returns:

true if the Display supports pointer motion events.

Since:

MIDP 3.0

getWidth

public int getWidth()

Gets the width in pixels of the Display. The available width reflects the maximum usable size of a Displayable shown on the Display as obtained using a Canvas in full-screen mode having no Commands, Menus, Title, or Ticker. The available width may be smaller than the width of the physical hardware.

Returns:

maximum width of the displayable area

Since:

MIDP 3.0

getHeight

public int getHeight()

Gets the height in pixels of the Display. The available height reflects the maximum usable size of a Displayable shown on the Display as obtained using a Canvas in full-screen mode having no Commands, Menus, Title, or Ticker. The available height may be smaller than the height of the physical hardware.

Returns:

maximum height of the displayable area

Since:

MIDP 3.0

setActivityMode

public void setActivityMode(int mode)

Sets the activity mode of this Display. The activity mode of the Display influences how power saving features are applied to the underlying display resource. If the mode is MODE_NORMAL, the device should apply normal power management policies and may take actions such as turning off the backlight or invoking a screensaver to reduce power consumption. If the mode is MODE_ACTIVE, the device must adjust its power management behavior and defer such actions so that regular operation is maintained for as long as possible. If the display device is already in a power-saving state, calling this method with MODE_ACTIVE should cause the display to return to its regular operating state. The current activity mode of the Display is honored only if it has foreground status. To avoid unpredictable behavior, screensaver MIDlets should not use MODE_ACTIVE.

Parameters:

mode - The desired activity mode for this Display (MODE_NORMAL or MODE_ACTIVE)

Throws:

java.lang.IllegalArgumentException - if the value of mode is not MODE_NORMAL or MODE_ACTIVE

Since:

MIDP 3.0

getActivityMode

public int getActivityMode()

Gets the activity mode of this Display. The mode is an attribute of the Display and does not reflect the current operating state of the underlying display resource. The activity mode is set to MODE_NORMAL by default.

Returns:

The activity mode for this Display (MODE_NORMAL or MODE_ACTIVE)

Since:

MIDP 3.0
